How to Choose the Right Cutting Tools for Your CNC Milling Project?

CNC milling is an actual and efficient manufacturing process that relies heavily on cutting tools. Choosing the right cutting tools can particularly impact the outcome of a project, including the grade of the finished product and the efficiency of the milling process. In this blog, we will discuss the importance of choosing the correct cutting tools for CNC milling projects and summarize the critical factors to consider when selecting.

Types of Cutting Tools

Several cutting tools are commonly used in CNC milling, each with outstanding features and benefits.

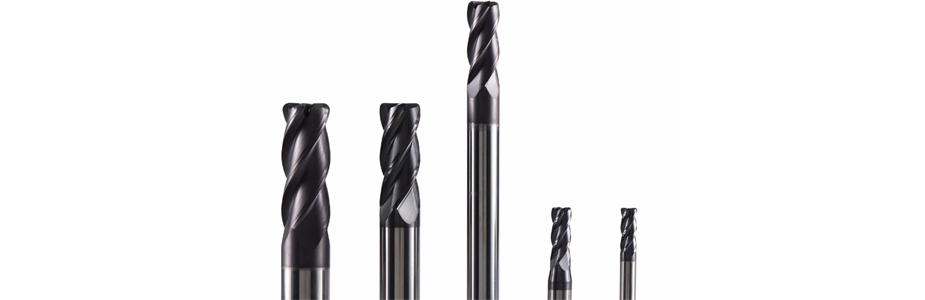

End mills

End mills are the most common cutting tool used to make slots, pockets, and other features in a workpiece. However, End mills can be made from multiple materials, including carbide, high-speed steel, and cobalt.

Drills

Drills make holes in a workpiece and can be either indexable or solid. Indexable drills have replaceable cutting inserts that permit longer tool life, while concrete activities are naturally more accurate and have higher stability.

Reamers

Reamers are used to enlarge and finish drilled holes to precise dimensions. They come in many shapes and sizes and are commonly made from high-speed steel or carbide.

Other cutting tools used in CNC milling include countersinks, chamfer, and thread mills.

When choosing a cutting tool, it's essential to consider factors such as the machining material, the necessary precision and surface finish, and the selected cutting speed and spread rate. The choice of cutting tool will also rely on the project's exact requirements, including the workpiece's shape and size and the expected result.

Material Selection

The machined material is critical in selecting cutting tools for CNC milling projects. Different materials have varying effects, such as hardness, toughness, and thermal conductivity, which can affect the performance and tool life of cutting tools.

Cutting tool material can also seriously impact tool life and performance. For example, carbide-cutting tools are typically more stable and can last longer than high-speed steel tools but can also be more costly. Coatings such as titanium nitride can be used for cutting tools to enhance wear opposition and extend tool life.

When choosing cutting tools, it's essential to consider the effects of the machined material and choose tools optimized for that same material. This will provide the best conceivable performance and efficiency from the milling process.

Cutting Parameters

Adjusting cutting parameters is essential in optimizing tool performance and ensuring a successful CNC milling project. Cutting parameters include factors such as cutting velocity, feed speed, and depth of cut.

Cutting speed guides to the rate at which the cutting tool turns during milling. A higher cutting speed can improve the efficiency of the milling process, but it can also improve the wear on the cutting tool. The spread rate guides the workpiece's speed relative to the cutting tool. A higher feed rate can result in quicker milling, leading to a rougher surface finish and improved tool wear.

The depth of cut refers to the consistency of the material being released in a single pass of the cutting tool. A more profound piece can decrease the number of keys needed to complete the milling process, but it can also strain the cutting tool and reduce tool life.

When adjusting cutting parameters, it's essential to consider the machined material, the type of cutting tool used, and the expected outcome. Changing cutting parameters can assist in optimizing tool performance and extend tool life, finally improving the efficiency and usefulness of the milling process.

Cutting Tool Coatings

Cutting tool coatings, such as titanium nitride (TiN), titanium carbonitride (TiCN), and titanium aluminum nitride (TiAlN), can seriously impact the performance and tool life of cutting tools in CNC milling projects.

The tin coating is a favorite choice for cutting tools used in milling operations affecting non-ferrous materials such as aluminum and brass. It delivers high wear opposition and prevents galling and built-up edges on the machine. TiCN and TiAlN coatings are often used for milling processes applying more complex materials such as stainless steel and titanium. They propose increased wear resistance and can withstand higher cutting speeds and temperatures.

It's important to note that the choice of coating will depend on the exact application and the machined material. A familiar CNC milling operator can guide the best layer based on the job's requirements.

How To Choose the Right Cutting Tool?

When choosing the right cutting tool for a CNC milling project, considering the job's specific conditions is essential to confirm that the device will function optimally. This involves assessing the CNC machining material, the selected finish, and the required speed and feed rates.

Cost

While high-performance tools may come with a higher price tag, they can also suggest longer tool life and improved cutting performance, eventually leading to cost savings in the long run. It's essential to balance price and performance when choosing a cutting tool.

Tool's geometry

Another necessary aspect to consider is the tool's geometry. Different cutting tool geometries are better suited for specific milling processes, such as roughing or finishing. Choosing a device optimized for a particular function is necessary to reach the desired outcomes.

Performance

Tool material is also an essential concern. High-speed steel (HSS) tools are a cost-effective option for numerous applications. Still, they may not offer the exact level of performance or tool life as more advanced materials such as carbide or ceramic. Again, it's important to balance cost and performance when choosing.

Frequently Asked Questions (FAQ)

· What is the significance of tool selection in CNC milling?

Choosing the proper cutting tools is crucial to optimal CNC milling results. Material, tool geometry, and cutting parameters must be carefully considered to provide the means to perform optimally and create high-quality parts.

· What is the difference between 2D and 3D CNC milling?

2D CNC milling involves cutting material along a flat plane, while 3D CNC milling involves cutting material along numerous axes to create three-dimensional shapes and designs.

· What are some specific applications of CNC milling?

CNC milling is used in different enterprises, including aerospace, automotive, and medical machine manufacturing.

In Summation

In conclusion, choosing the right cutting tool for a CNC milling project involves evaluating the job's requirements and considering cost, tool life, and performance factors. By making informed decisions, operators can guarantee that their tools perform optimally and reach the desired outcomes. If you still have any queries about the CNC milling project, feel free to comment below.
