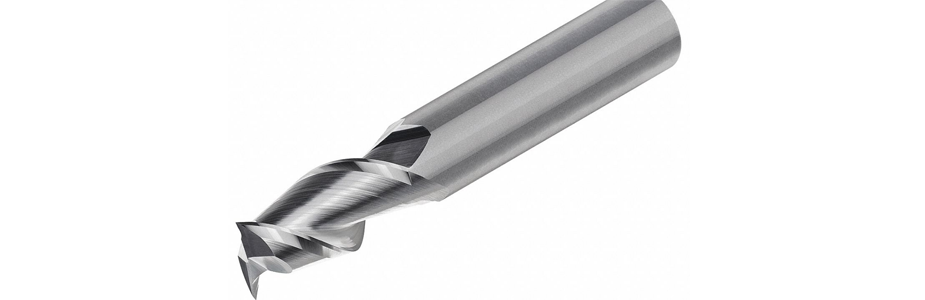

How to Choose the Right End Mill for CNC Milling Aluminum?

CNC milling aluminum is widely used in modern manufacturing due to its versatility and accuracy. It involves using a computer-controlled machine to release material from a block of aluminum to make an exact shape or part. One of the essential factors that can impact the accuracy and efficiency of this process is the end mill selection. This blog post will explore the essential factors when choosing the right end mill for CNC milling aluminum.

Understanding End Mill Anatomy

End mills are cutting tools for machining operations, including CNC milling aluminum. Understanding the anatomy of an end mill is essential for choosing the correct tool for the job.

The most common types of end mills are:

1. Ball Nose End Mills - have a rounded tip ideal for contouring and 3D machining. They are available in various sizes and typically have two or four flutes.

Flat End Mills - have a flat bottom and are suitable for creating flat surfaces, slots, and pockets. They are available in various sizes and typically have two or four flutes.

Corner Radius End Mills - have a rounded corner that is perfect for making rounded edges and easing acute corners. They are available in various sizes and typically have two or four flutes.

Roughing End Mills - have a jagged cutting-edge standard for quickly releasing significant amounts of material. They are available in various sizes and typically have two or four flutes.

Tapered End Mills - have a conical shape that is ideal for creating tapered holes, slots, and angled surfaces. They are available in various sizes and typically have two or four flutes.

Material Considerations

When selecting an end mill for CNC milling aluminum, it's essential to consider the specific material you will be machining. The material properties of aluminum, such as its low thermal conductivity and tendency to stick to cutting tools, require specialized end mills to achieve optimal results.

1. Material Hardness -

Aluminum is relatively soft, so you will want an end mill with a lower hardness rating to prevent premature wear.

Chip Evacuation -

However, Aluminum tends to stick to cutting tools, so an end mill with compelling chip evacuation features is necessary to maintain a smooth and efficient machining process.

Cutting Speed -

Aluminum has a relatively low melting point, so high cutting speeds are necessary to avoid melting the material and causing poor surface finishes.

Surface Finish -

The surface finish required for your part will also affect the type of end mill you should use.

Popular end mill materials for machining aluminum include:

1. Carbide - Carbide end mills are famous for machining aluminum because they are tough and wear-resistant, allowing for high cutting speeds and extended tool life.

2. High-Speed Steel (HSS) - HSS end mills are a more economical option for machining aluminum but have a shorter lifespan than carbide.

3. Cobalt - Cobalt end mills are another option for machining aluminum, offering increased heat resistance and durability compared to HSS.

Tool Coatings and Surface Treatments

Tool coatings and surface treatments can significantly impact the performance and efficiency of end mills when CNC milling aluminum. Coatings and treatments can help to reduce wear and friction, improve chip evacuation, and increase tool life.

Some popular coatings and surface treatments for aluminum end mills include:

1. Titanium Nitride (TiN) - TiN layers are understood for their increased wear resistance and low conflict. They are suitable for machining aluminum and other non-ferrous metals.

Titanium Carbonitride (TiCN) - TiCN coatings offer a higher level of wear resistance than TiN coatings, making them ideal for high-speed aluminum machining.

Aluminum Titanium Nitride (AlTiN) - AlTiN coatings are ideal for high-temperature applications, offering high wear resistance and low friction.

Polycrystalline Diamond (PCD) - PCD layers are diamond particles bonded to a carbide substrate. They are highly wear-resistant and ideal for machining abrasive materials like aluminum.

Surface Treatments - Some popular surface treatments for end mills include diamond-like carbon (DLC) and coatings with a hydrophobic or oleophobic surface. These treatments can help to reduce friction and prevent chip buildup, resulting in a more efficient machining process.

Cutting Edge Design

The cutting-edge design of an end mill plays a critical role in chip formation, tool life, and the overall efficiency of the CNC machining process. When CNC milling aluminum, choosing an end mill with a cutting-edge design optimized for machining material is essential.

Some popular cutting-edge designs for aluminum end mills include:

1. Two Flute - Two flute end mills are the most common type for machining aluminum. They offer a high chip capacity and a smooth finish.

Three Flute - Three flute end mills are another popular option for aluminum machining; offering improved chip evacuation and a higher feed rate.

Four Flute - Four flute end mills are less common for aluminum machining but ideal for applications requiring a high material removal rate.

High Helix - High helix end mills have a larger flute angle, allowing for more efficient chip evacuation and reduced heat buildup during machining.

Variable Helix - Variable helix end mills have varying flute angles along the length of the cutting edge. This design can help to reduce chatter and vibration during machining, resulting in a smoother finish.

Size and Length

The size and Length of an end mill are critical considerations when selecting a tool for CNC milling aluminum. These factors can impact the tool's reach and rigidity, affecting the machining process's quality and efficiency.

When choosing the size and Length of an aluminum end mill, consider factors such as:

1. Material Thickness -

2. Cutting Diameter -

3. Reach -

4. Rigidity -

Some popular sizes and lengths for aluminum end mills include:

1. 1/8" Diameter -

2. 1/4" Diameter -

3. 1/2" Diameter -

4. 2-3" Length -

Frequently Asked Questions (FAQ)

· Can I use the same end mill for multiple materials?

While some end mills may be suitable for machining multiple materials, it is generally best to use a specific end mill for each machined material.

· What is the best cutting-edge design for aluminum end mills?

A two-flute design is typically the best choice for aluminum end mills, providing good chip evacuation and tool life.

· Why is choosing a suitable end mill for CNC milling aluminum important?

Choosing the right end mill for CNC milling aluminum is crucial for achieving precise and efficient results. Using the wrong tool can result in poor surface finishes, decreased tool life, and other issues.

To Sum Up

Choosing the right end mill for CNC milling aluminum is critical to achieving precise and efficient results. You can optimize your aluminum machining process by understanding the anatomy of end mills, considering material factors, selecting appropriate tool coatings and surface treatments, and choosing the right cutting-edge design, shank design, and size and Length.
